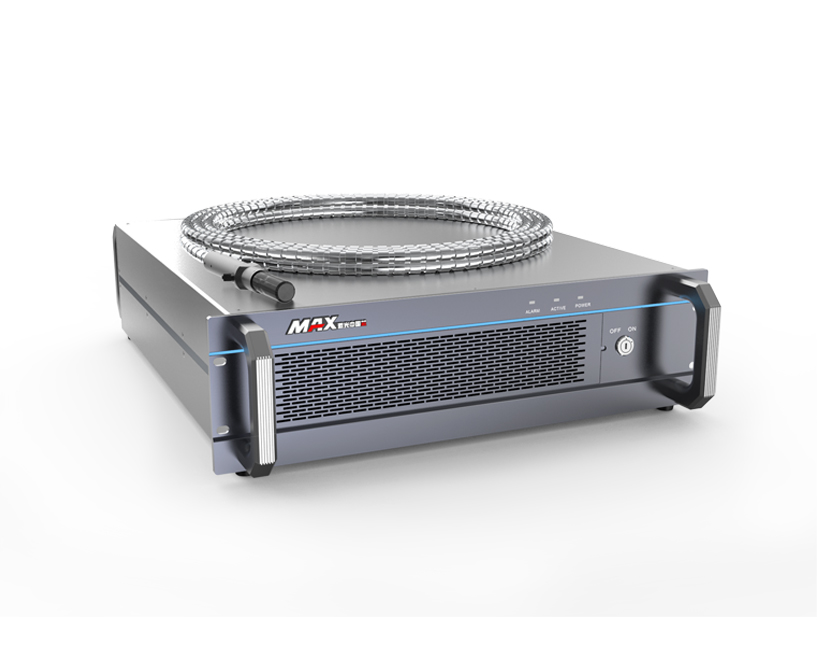

200W/300L SINGLE MODULE CW FIBER LASER(AIR COOLING)
Product Description
200W/300L Single-Module CW Fiber Laser based on modular design, has excellent beam quality and high stability, which structure is compact and air cooling.The laser can be adjusted continuously,and the beam is transmitted by fiber and QBH connector. The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing on electronics, automobile parts, etc.
Product Specification
Up to 6KW Output From CW Single Module Series
Better beam quality vs. multi module lasers
Greatly improved efficiency
Excellent Material Processing Performance
High speed in thin sheet cutting
Strong capability in thick material processing
Compact Design, Maintenance Free
Highly integrated system with modular design
Easy maintenance significantly reduce TCO
Smaller Size with Higher Stability
>60% reduction in volume
Higher flexibility when integrated in to system
High Level Vertical Integration
All key components are designed and produced in house
Strict quality control, high consistency and reliability
Sample Show

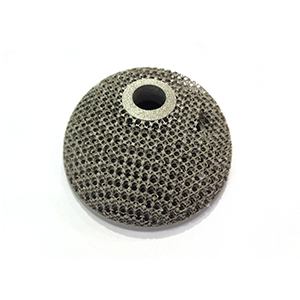

Metal 3D Printing

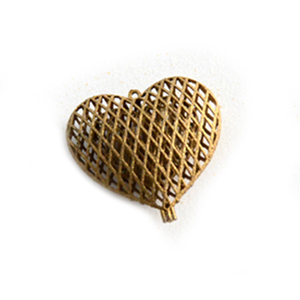

Metal 3D Printing

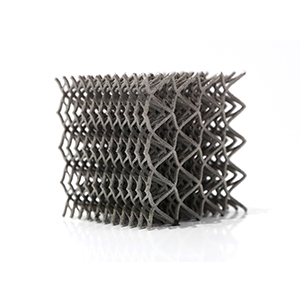

Metal 3D Printing

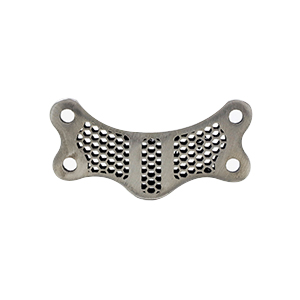

Metal 3D Printing
Industry Applications
Telecommunications Industry
Communication jumper / cable / optical cable marking
Industry Applications
Sheet Metal Processing
Cutting and welding of steel plates and tubes
Industry Applications
Construction Material
Laser cutting of construction iron frames, cutting of doors and windows, cleaning of rust on iron frames, welding of iron frames
Industry Applications
Jewellery
Rings / necklaces / gold cutting, marking characters / patterns
Industry Applications
Advertising Industry
Cutting and welding of metal billboards / advertising stands. Advertising character marking
Industry Applications
3C Consumer Electronics
Character marking for accessories such as mobile phones / tablets / computers and charging heads, internal antenna / middle board / camera welding. Volume hole perforation
Industry Applications
Scientific Research
The laser illuminates the object, and the internal structure emits changes. Laser irradiation promotes physical / chemical reactions of materials, laser fusion
Industry Applications
Semiconductor
Fine marking / scribing of semiconductor device characters
/
Product Parameters
Models MFSC-200W MFSC-300L
OPTICAL SPECIFICATIONS
Nominal Power 200W 250W
Mode of Operation CW/Modulated
Polarization Random
      Power Tunability 10 to 100%
Wavelength 1080 ± 5 nm
Power Stability ±1 %
Laser Beam Quality M² 1.1 to 1.2
Modulation Frequency 20~50kHz
Preview Red Light Power 150μW
FIBER DELIVERY SYSTEM
Interface QCS/QBH(LOC)
Length 10m standard, other lengths optional
Diameter 20(25/30/50) μm
Bending Radius 200 mm
ELECTRICAL RATINGS
Supply Voltage 220VAC (-15% to +10%) Single-phase
OTHER SPECIFICATIONS
Operating Temperature 0 to +35℃
Storage Temperature -10 to +60℃
Humidity 10 to 90%
Cooling Method Air Cooling
Dimension 482.6×595×177 mm
Weight 35 kg
