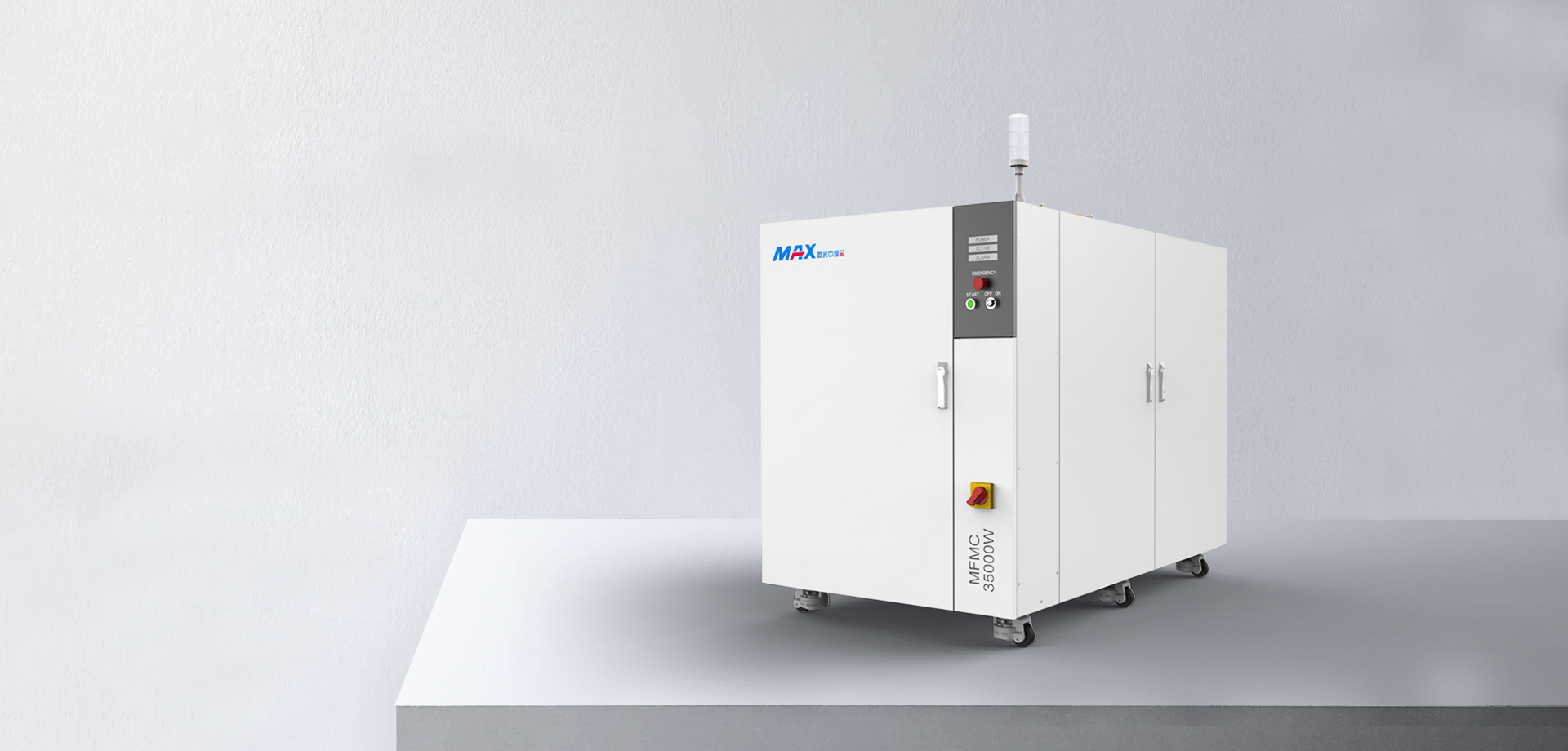

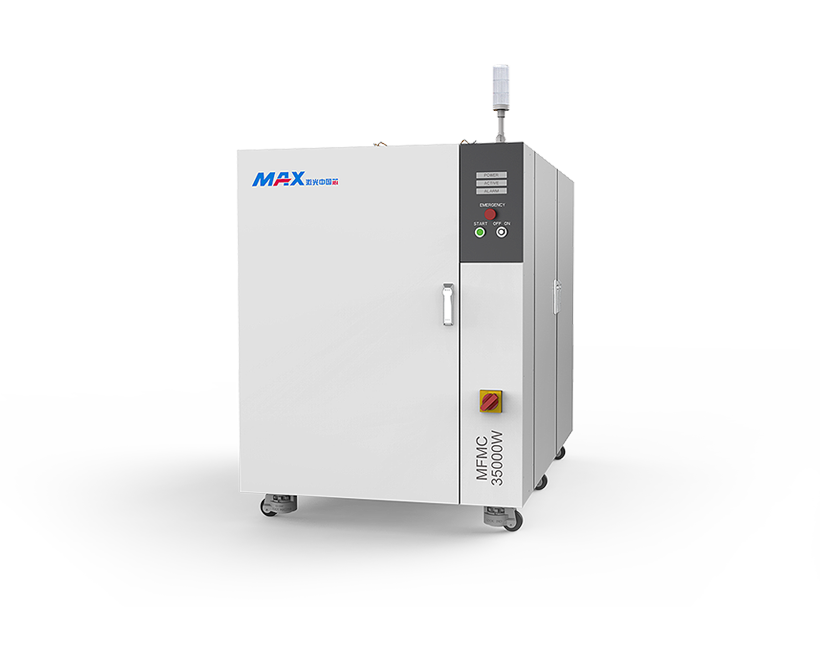

35000W MULTI-MODULE CW FIBER LASER
Product Description
Maxphotonics 35000W Multi-Module CW Fiber Laser adopts water cooling, modular design, compact structure, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high electro-optical conversion efficiency , high beam quality , and high laser stability. It is an ideal laser source for thick plate laser cutting, laser welding, laser cladding, surface heat treatment and other applications. 35000W CW Fiber Laser adopts optical fiber with QBH head output, 35000W CW Fiber Laser adopts optical fiber with LOE head output, which can be used with laser processing heads, galvanometers, etc,for system integration with robots and machine tools. It is widely used in hardware, medical, automotive, marine, aviation, Construction machinery and other industry.
Product Specification
High Power with Great Beam Quality
High power density with flat-head distribution
High wall-plug efficiency
Even Energy Distribution
Less splash during cutting and welding
Excellent Material Processing Performance
High speed in thin sheet cutting
Strong capability in thick material processing
Compact Design, Maintenance Free
Highly integrated system with modular design
High stability and easy maintenance significantly reduce TCO
Best Choice for Cutting and Welding
Widely used in hardware processing, automobile, shipping, construction machinery, medical industries and more
Sample Show

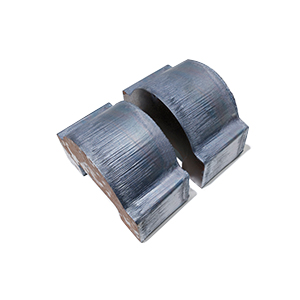

25-30mm Carbon Steel Cutting

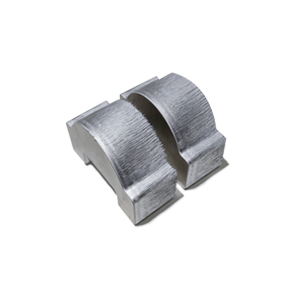

50mm Aluminum Cutting

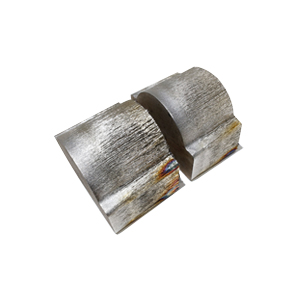

50mm Carbon Steel Cutting

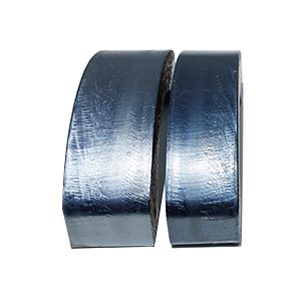

60-70mm Stainless Steel Cutting
Industry Applications
Telecommunications Industry
Communication jumper / cable / optical cable marking
Industry Applications
Sheet Metal Processing
Cutting and welding of steel plates and tubes
Industry Applications
Construction Material
Laser cutting of construction iron frames, cutting of doors and windows, cleaning of rust on iron frames, welding of iron frames
Industry Applications
Shipbuilding
Laser cleaning of ships, laser cutting / welding of hulls
Industry Applications
Home Appliance Manufacturing
Sink / faucet / kitchenware stainless steel cutting and welding,Kitchenware panel character / graphic marking
Industry Applications
Petrochemical Industry
(Welding and cutting of petroleum pipelines), laser cleaning of pipelines
Industry Applications
Advertising Industry
Cutting and welding of metal billboards / advertising stands. Advertising character marking
Industry Applications
3C Consumer Electronics
Character marking for accessories such as mobile phones / tablets / computers and charging heads, internal antenna / middle board / camera welding. Volume hole perforation
Industry Applications
Rail Transit
Rail rust laser cleaning, rail parts cutting, rail joint welding
Industry Applications
Scientific Research
The laser illuminates the object, and the internal structure emits changes. Laser irradiation promotes physical / chemical reactions of materials, laser fusion
Industry Applications
AEROSPACE
3D printing metal parts inside the aircraft, laser cleaning and refurbishment of aircraft engines / airframes
Industry Applications
Photovoltaic
Laser scribing of solar panels
Industry Applications
Packing
Flying marking of cans / plastic food packaging. Flying marking of plastic bottle
/
Product Parameters
Model MFMC-35000W
OPTICAL SPECIFICATIONS
Nominal Power 35000W
Mode of Operation CW/Modulated
Polarization Random
Power Tunability 5 to 100%
Wavelength 1080 ± 5 nm
Laser Beam Quality, BPP 8 to 10 mm x mrad
Modulation Frequency ≤5kHz
Preview Red Light Power 200 μW
FIBER DELIVERY SYSTEM
Interface LOE
Length 20m standard, other lengths optional
Diameter 150/200 μm
Bending Radius 200 mm
ELECTRICAL RATINGS
Supply Voltage 380VAC (-15% to +10%) 3-phase
OTHER SPECIFICATIONS
Operating Temperature +10 to +40℃
Storage Temperature -10 to +60℃
Humidity 10 to 85%
Cooling Method Water Cooling
Cooling Medium Distilled water/ Glycol Antifreeze
Dimension 1050×1493×1647 mm
Weight 1290(±10) kg
